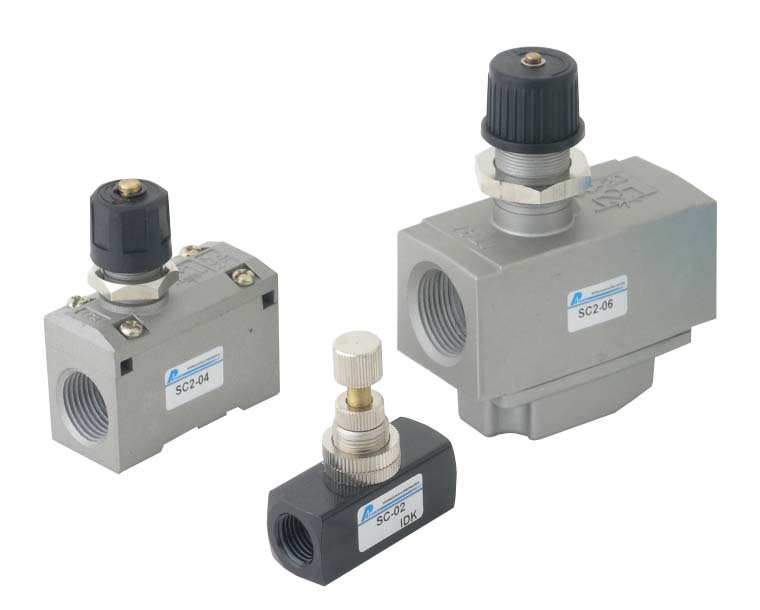

速度控制器 |
| |
 |
特性 |
| |
|
- 安裝方便
- 可輕易調整氣缸行進速度。
- 簡單設計，可依流量需求選擇適當口徑。
|
| |
|
| |
|
|
| |
| |
| 規格&規範表 |
|
|
|
 |

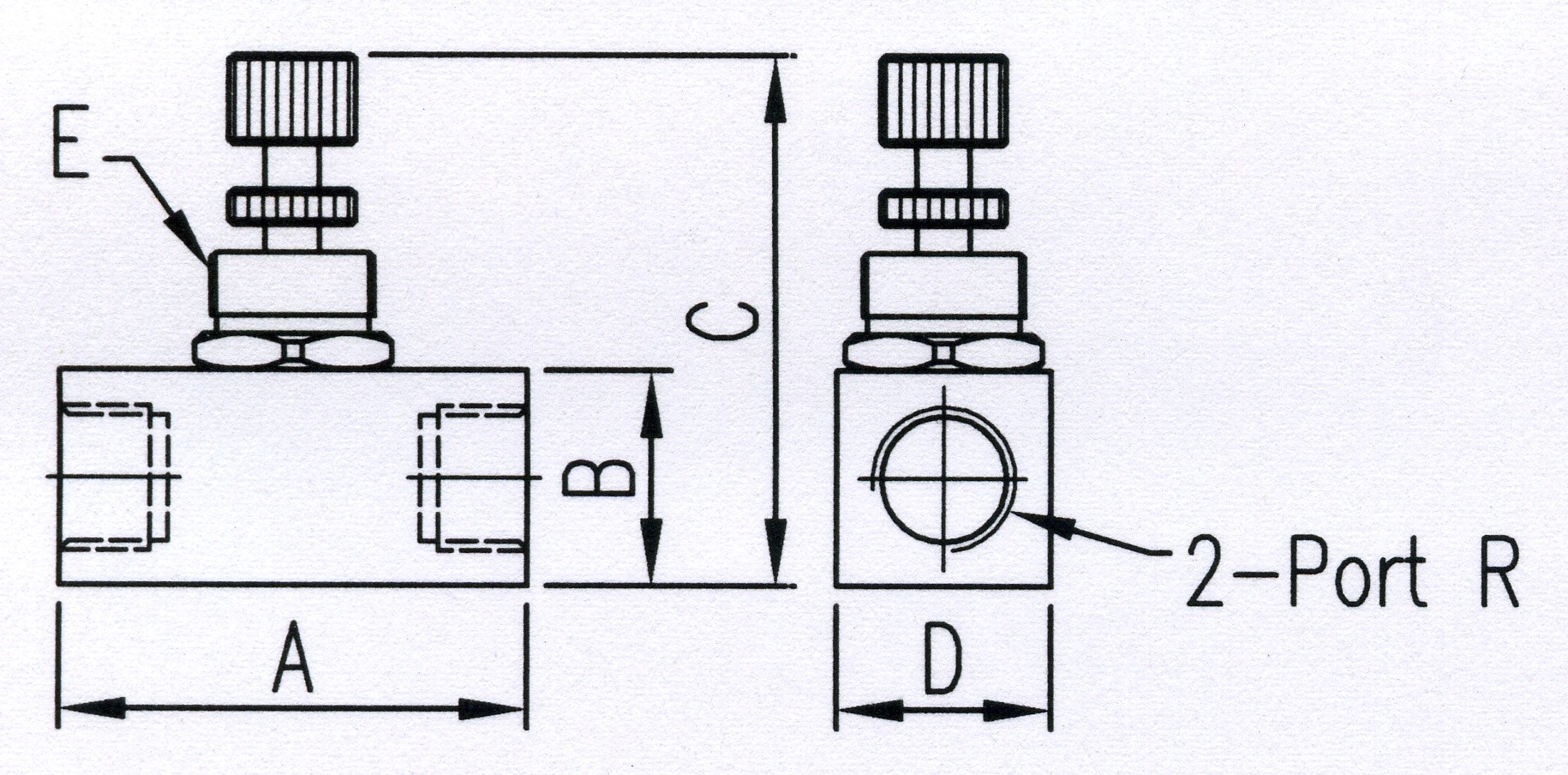

型 號 |
SC-01 |
SC-02 |
| Port size |
1/8" |
1/4" |
| A |
45.0 |
45.0 |
| B |
19.0 |
19.0 |
| C |
53.0 |
53.0 |
| D |
19.0 |
19.0 |
| E |
M14.0 x P1.0 |
M14.0 x P1.0 |
|
| |
|
 |

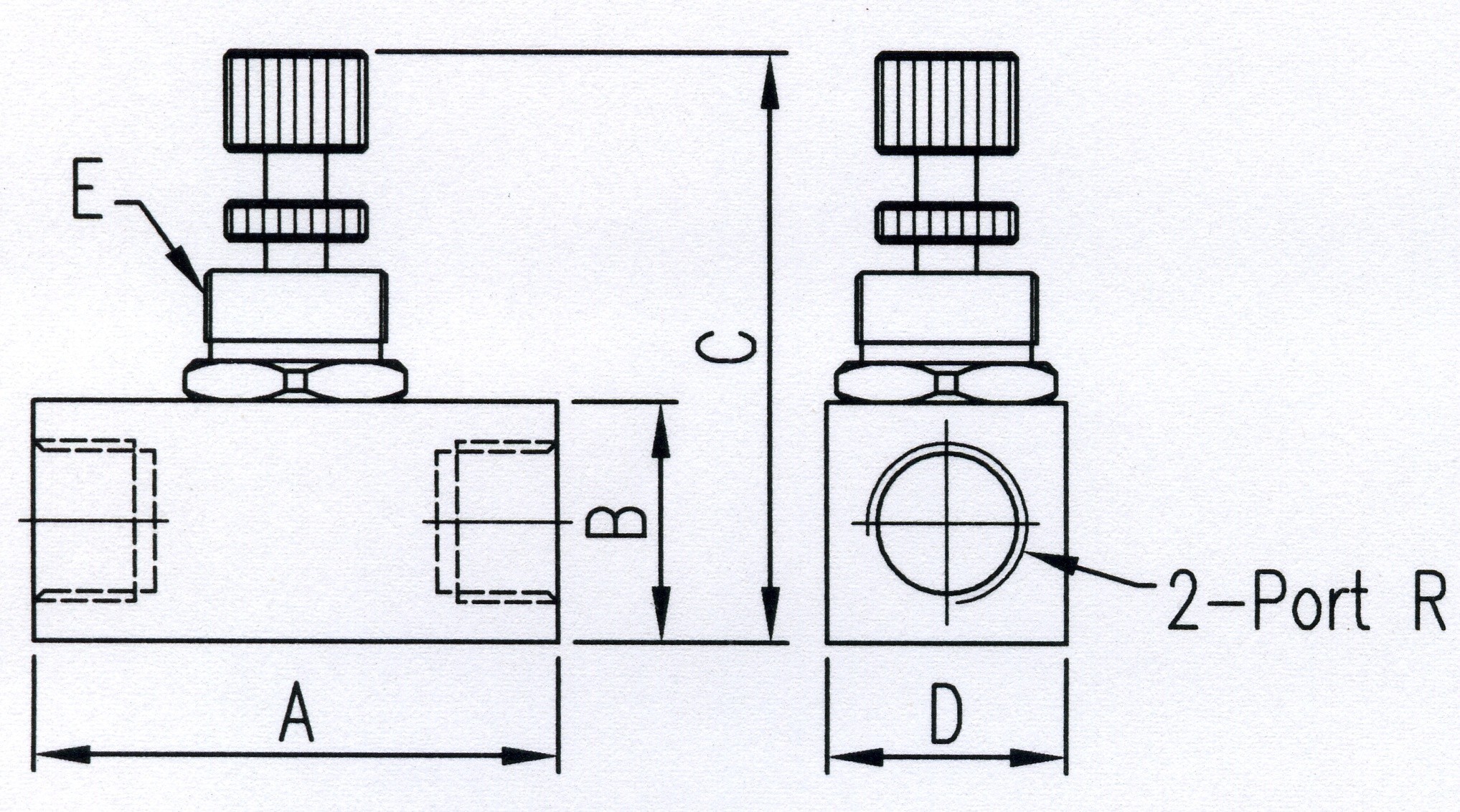

型 號 |
SC-03 |
SC-04 |
| Port size |
3/8" |
1/2" |
| A |
55.0 |
60.0 |
| B |
25.4 |
32.0 |
| C |
63.0 |
63.0 |
| D |
25.4 |
32.0 |
| E |
M22.0 x P1.0 |
M27.0 x P1.0 |
|
| |
|
 |

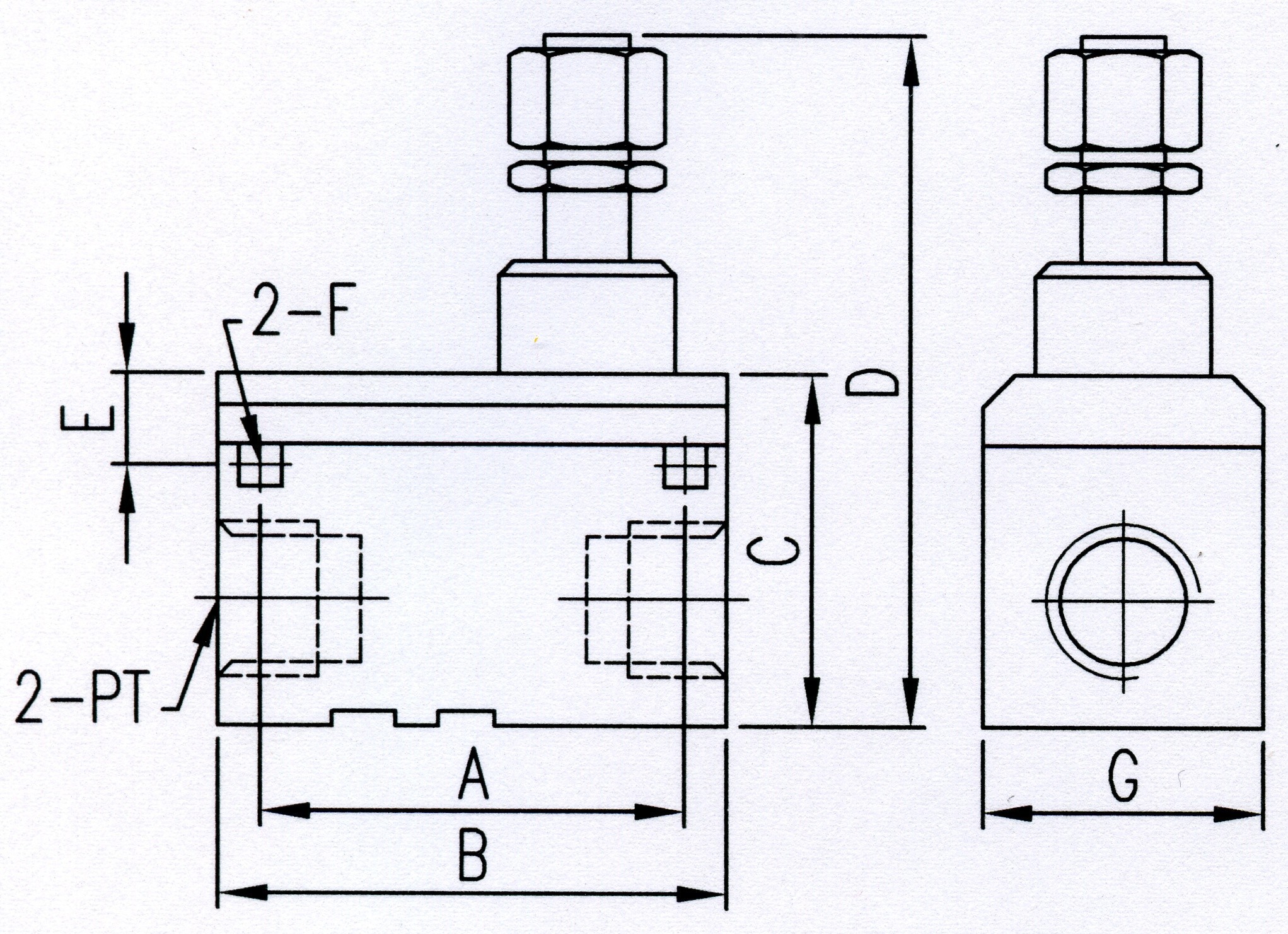

型 號 |
SCH-03 |
SCH-04 |
| PT |
3/8" |
1/2" |
| A |
54.0 |
54.0 |
| B |
63.0 |
63.0 |
| C |
40.0 |
40.0 |
| D |
61.0 |
61.0 |
| E |
10.0 |
10.0 |
| F □ |
4.5 |
4.5 |
| G |
29.5 |
29.5 |
|
|
|
|
 |

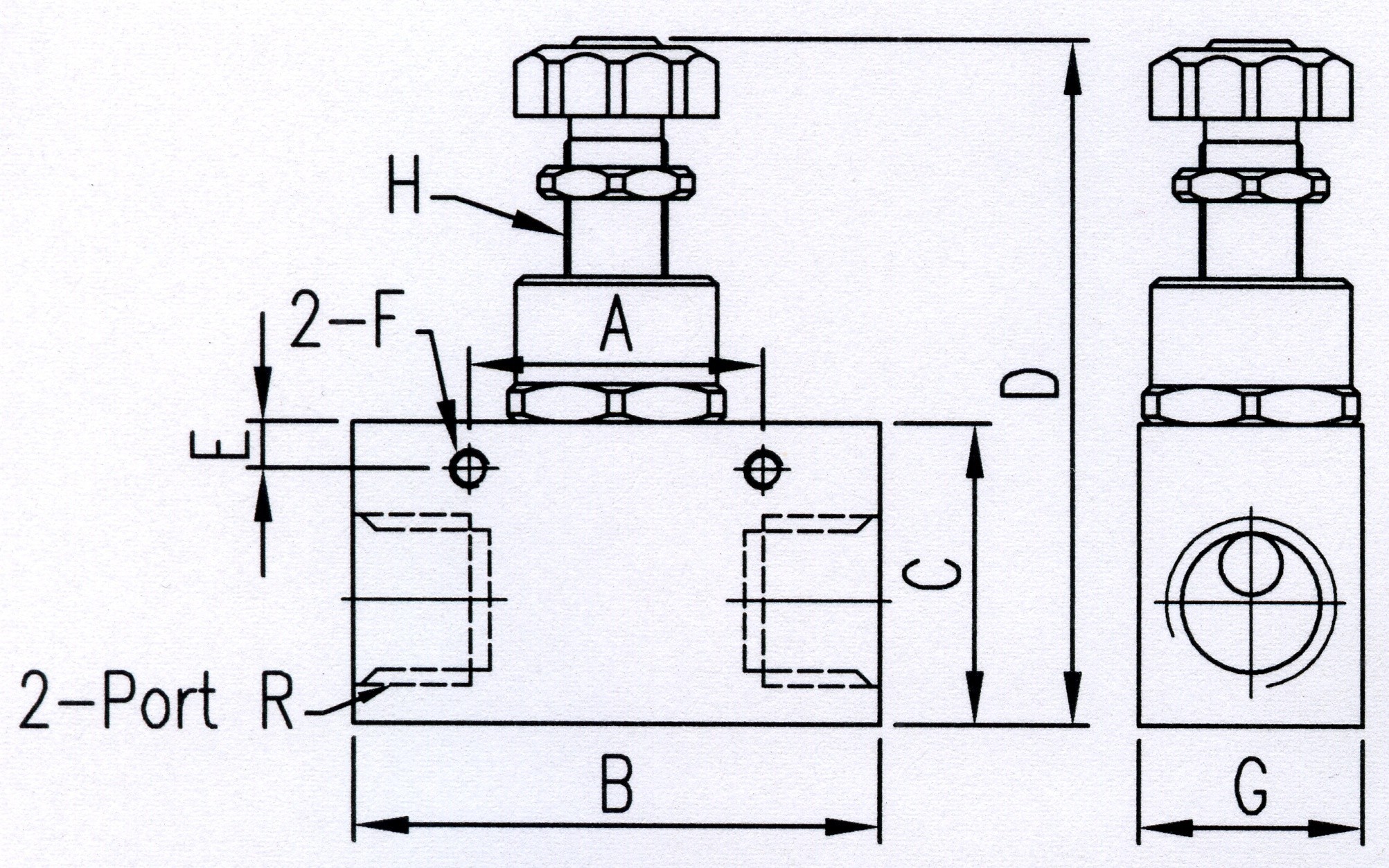

型 號 |
SC-06 |
SC-08 |
| Port size |
3/4" |
1" |
| A |
50.0 |
50.0 |
| B |
90.0 |
90.0 |
| C |
51.0 |
51.0 |
| D |
124.0 |
124.0 |
| E |
7.8 |
7.8 |
| F |
6.3 |
6.3 |
| G |
38.0 |
38.0 |
| H |
M32 x P1.0 |
M32.0 x P1.0 |
|
| |
|
|
|
| |
|
|
| |
