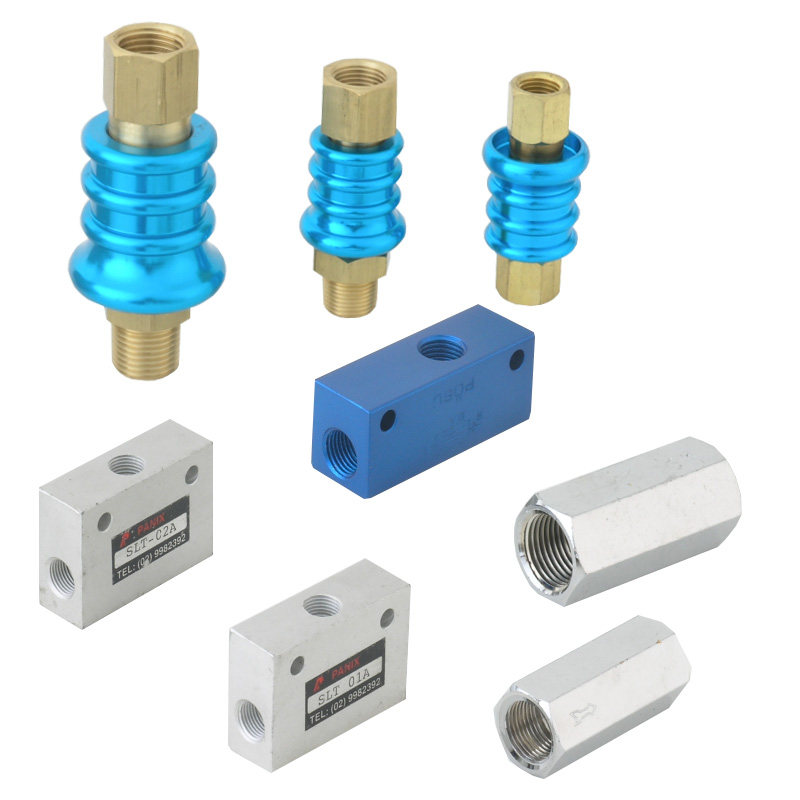

殘壓排放閥&梭動閥&逆止閥 | |
 |
特性 | |
|
||
|

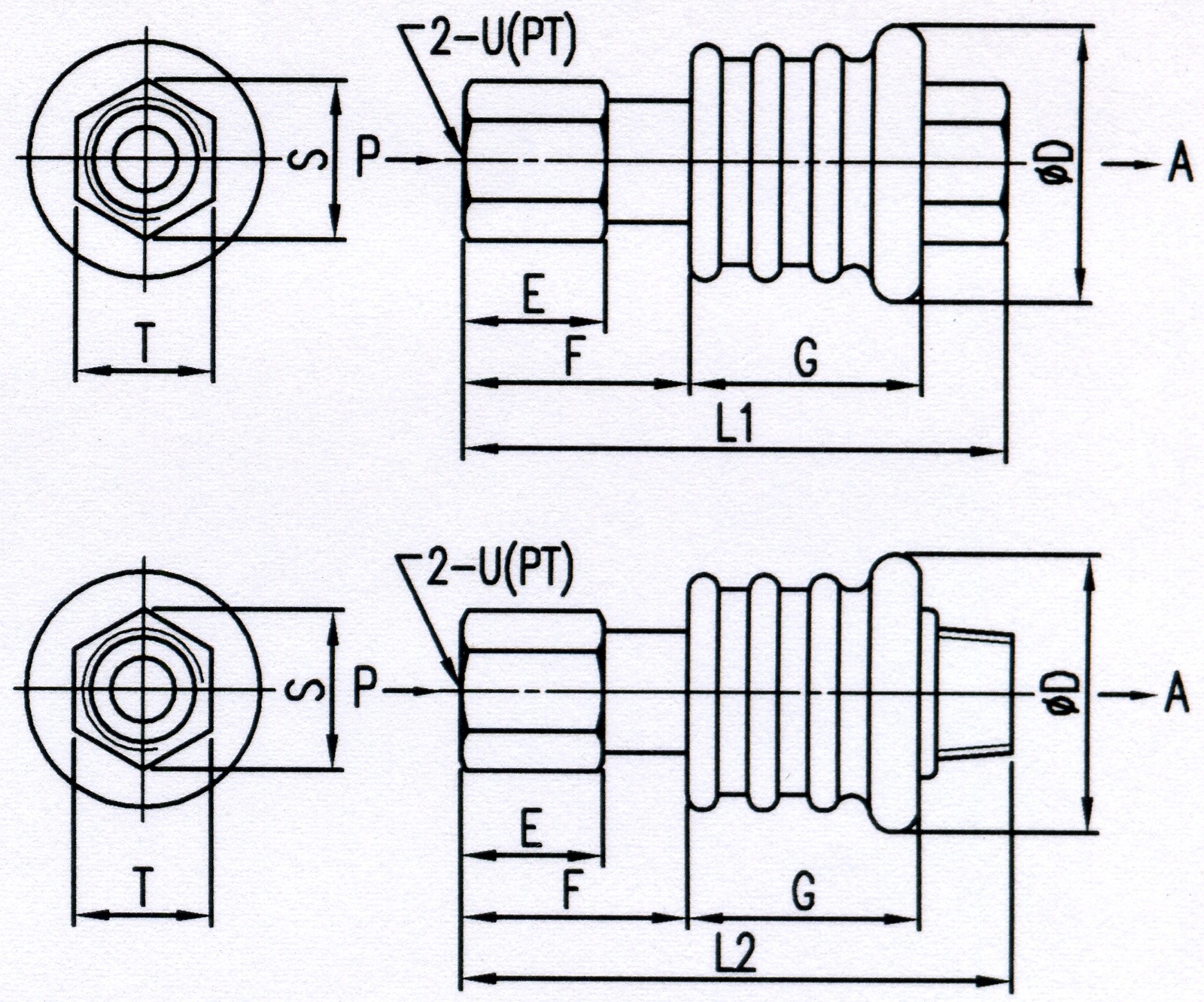

殘壓排放閥 |
||||||||||
 |
型 號 | D | E | F | G | L1 | L2 | S | T | U |
| UBW - 01 | 25 | 10 | 16 | 26 | 51 | 55 | 16.2 | 14 | 1/8" | |
| UBW - 02 | 25 | 15 | 21 | 26 | 57 | 62 | 19.6 | 17 | 1/4" | |
| UBW - 02 | 32 | 15 | 24 | 31 | 65.5 | 70.5 | 19.6 | 17 | 1/4" | |
| UBW - 03 | 32 | 15 | 24 | 31 | 65.5 | 70.5 | 25.4 | 22 | 3/8" | |
| UBW - 04 | 48 | 20 | 33.5 | 46.5 | 98 | 100.5 | 28.9 | 25 | 1/2" | |
| UBW - 06 | 48 | 20 | 33.5 | 46.5 | 98 | 106 | 34.6 | 30 | 3/4" | |
|

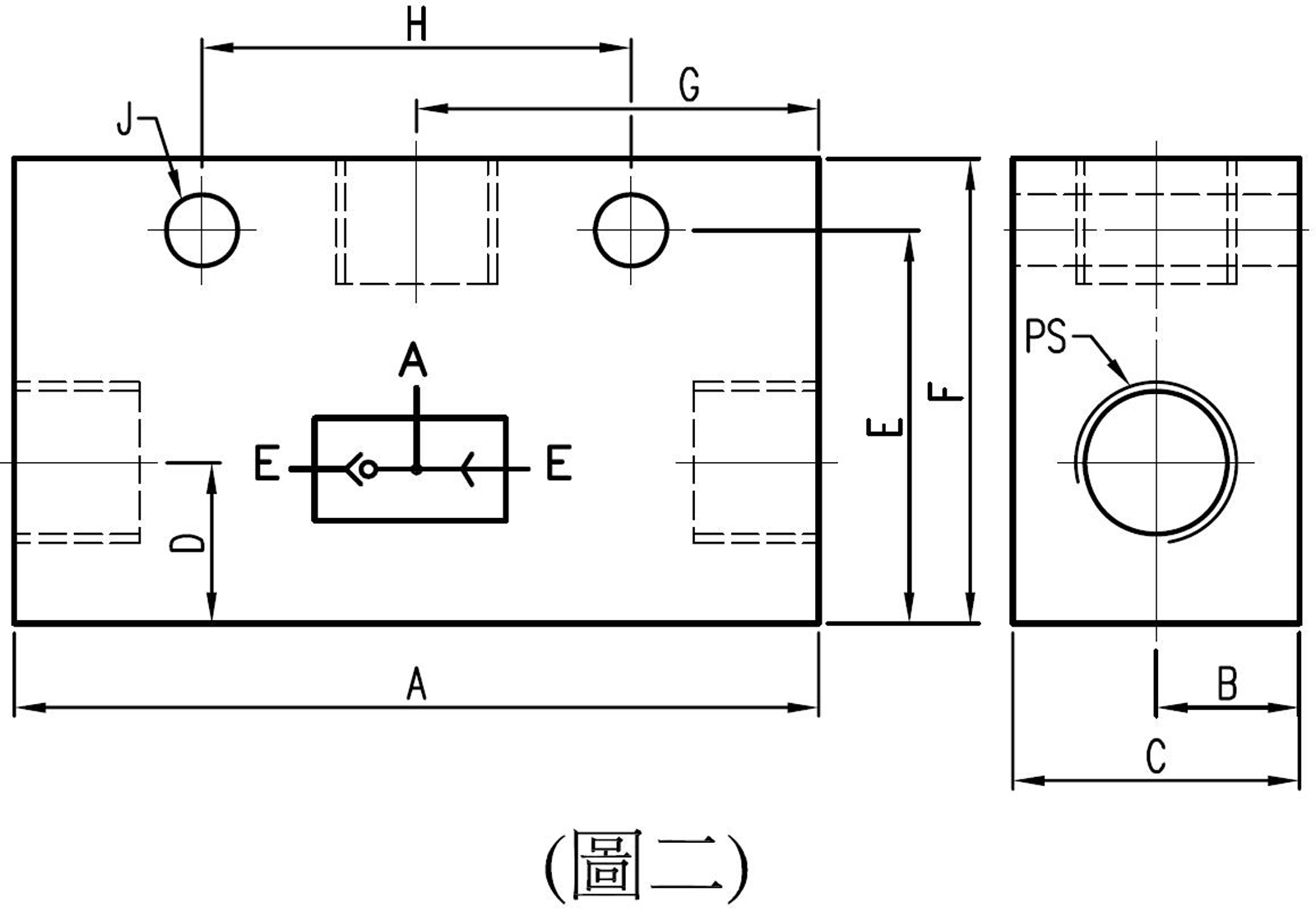

梭動閥 |
|||||||||||
 |
型 號 |
流量L/min |
A | B | C | D | E | F | G | H | PS |
| SLT - M5 | 110 | 25 | 6 | 12 | 16 | 19 | 22 | 12.5 | 16 | M5 | |
| SLT - 01A | 650 | 45 | 8 | 16 | 9 | 22 | 26 | 22.5 | 24 | 1/8 | |
| SLT - 02A | 1300 | 55 | 13 | 26 | 12 | 29 | 33 | 24 | 45 | 1/4 | |

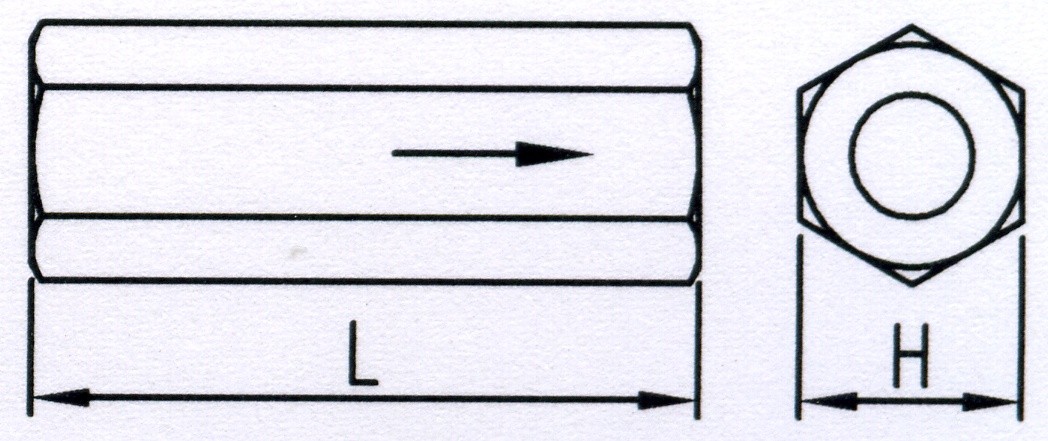

| 逆止閥 | ||||
 |
型 號 | 尺 寸 | ||
| PT | L | H | ||
| ACV -01 | 1/8 | 42 | 9 | |
| ACV - 02 | 1/4 | 50 | 17 | |
| ACV - 03 | 3/8 | 50 | 21 | |
| ACV - 04 | 1/2 | 60 | 24 | |
| ACV - 06 | 3/4 | 60 | 32 | |
| ACV - 10 | 1" | 75 | 38 | |
